硒化鋅（ZnSe）負彎月球面透鏡
材 料:ZnSe（硒化鋅）
設計波長:10.6μm
焦距公差:±1%
外形公差:+0.0/-0.1mm
厚度公差:±0.2mm
面 型:λ/[email protected]
光 潔 度:60-40
偏 心:<3'
有效孔徑:>80%
倒 邊:<0.2×45°
鍍 膜:IR AR Coating 8-12μm
 |
點擊下載產品目錄 |

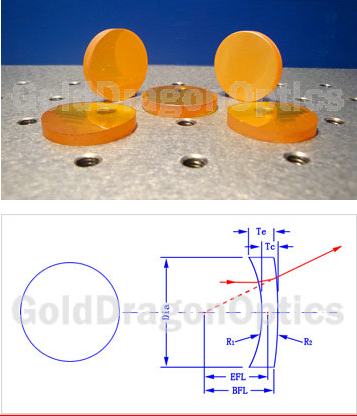

硒化鋅（ZnSe）負彎月球面透鏡 (尺寸及鍍膜可按用戶需求定制)單位
| 編號(NO.) | 焦距(EFL) | 直徑(Dia) | 半徑(R) | 中心厚(Tc) | 邊厚(Te) | 后焦距(BFL) |
| 14F7769R | -15.00 | 12.70 | (R1)7.50(R2)13.47 | 2.00 | 3.90 | -17.33 |
| 14F7134R | -20.00 | 12.70 | (R1)7.90(R2)12.63 | 2.00 | 3.50 | -22.96 |
| 14F7185R | -40.00 | 12.70 | (R1)7.65(R2)10.88 | 3.00 | 4.30 | -49.16 |
| 14F7733R | -25.40 | 25.40 | (R1)15.50(R2)31.57 | 4.00 | 8.00 | -29.23 |
| 14F7601R | -50.00 | 25.40 | (R1)15.56(R2)23.00 | 4.00 | 6.70 | -57.50 |
| 14F7053R | -75.00 | 25.40 | (R1)15.53(R2)20.97 | 4.00 | 6.30 | -86.27 |
| 14F7785R | -100.00 | 25.40 | (R1)21.65(R2)28.36 | 4.00 | 5.10 | -110.79 |
| 14F7113R | -150.00 | 25.40 | (R1)33.56(R2)42.71 | 4.00 | 4.60 | -160.44 |
| 14F7321R | -200.00 | 25.40 | (R1)45.92(R2)57.69 | 4.00 | 4.40 | -210.17 |
| 14F7639R | -500.00 | 25.40 | (R1)118.98(R2)146.10 | 4.00 | 4.10 | -509.81 |
| 14F7589R | -750.00 | 25.40 | (R1)179.73(R2)219.57 | 4.00 | 4.10 | -759.74 |
| 14F7573R | -1000.00 | 25.40 | (R1)240.47(R2)293.05 | 4.00 | 4.10 | -1009.71 |
