球面透鏡系列
正膠合透鏡
設(shè)計波長:A:486.1nm 587.6nm 656.3nm
B:706.5nm 855nm 1015nm
C:1016nm 1330nm 1550nm
焦距公差:±1%
外形公差:+0.0/-0.1mm
厚度公差:±0.2mm
面 型:λ/[email protected]
光 潔 度:60-40
偏 心:<3'
有效孔徑:>90%
鍍 膜:多層增透膜
A:350-650nm
B:650-1050nm
C:1050-1580nm
B:706.5nm 855nm 1015nm
C:1016nm 1330nm 1550nm
A:350-650nm
B:650-1050nm
C:1050-1580nm
 |
點擊下載產(chǎn)品目錄 |

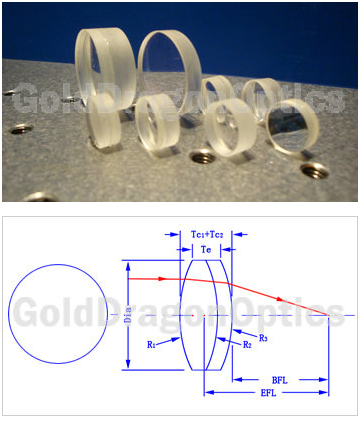

正膠合透鏡 (尺寸及鍍膜可按用戶需求定制)單位(mm)
| 編號(NO.) | 焦距(EFL) | 直徑(Dia) | 中心厚(Tc) | 邊厚(Te) | 后焦距(BFL) | 材料(Material) |
| 18AC050-008-A | 7.50 | 5.00 | 4.50 | 3.70 | 5.20 | H-ZBAF52 H-ZF7L |
| 18AC050-008-B | 7.50 | 5.00 | 4.60 | 3.80 | 4.80 | H-ZBAF52 H-ZF7L |
| 18AC050-008-C | 7.50 | 5.00 | 4.00 | 3.10 | 5.20 | H-LAK10 H-ZF7L |
| 18AC050-010-A | 10.00 | 5.00 | 4.40 | 3.70 | 7.90 | BAK7 ZF2 |
| 18AC050-010-B | 10.00 | 5.00 | 3.80 | 3.20 | 8.00 | H-LAK10 H-ZF7L |
| 18AC050-010-C | 10.00 | 5.00 | 4.00 | 3.30 | 6.90 | H-LAK10 H-ZF7L |
| 18AC050-015-A | 15.00 | 5.00 | 4.80 | 4.30 | 13.60 | H-K9L ZF1 |
| 18AC050-015-B | 15.00 | 5.00 | 4.00 | 3.60 | 13.00 | H-LAK10 H-ZF7L |
| 18AC050-015-C | 15.00 | 5.00 | 3.30 | 2.90 | 11.60 | H-ZBAF52 H-ZF7L |
| 18AC060-010-A | 10.00 | 6.00 | 4.00 | 3.00 | 7.90 | BAK7 ZF2 |
| 18AC060-010-B | 10.00 | 6.00 | 4.00 | 2.30 | 8.10 | H-LAK10 H-ZF7L |
| 18AC060-010-C | 10.00 | 6.00 | 4.80 | 3.90 | 8.50 | H-LAK10 H-ZF7L |
| 18AC064-013-A | 12.70 | 6.35 | 4.00 | 3.10 | 10.30 | BAK7 ZF2 |
| 18AC064-013-B | 12.70 | 6.35 | 3.90 | 3.10 | 10.70 | H-LAK10 H-ZF7L |
| 編號(NO.) | 焦距(EFL) | 直徑(Dia) | 中心厚(Tc) | 邊厚(Te) | 后焦距(BFL) | 材料(Material) |
| 18AC064-013-C | 12.70 | 6.35 | 4.10 | 3.30 | 11.40 | H-LAK10 H-ZF7L |
| 18AC064-015-A | 15.00 | 6.35 | 4.00 | 3.20 | 13.00 | H-K9L ZF1 |
| 18AC064-015-B | 15.00 | 6.35 | 3.90 | 3.20 | 13.10 | H-LAK10 H-ZF7L |
| 18AC064-015-C | 15.00 | 6.35 | 3.60 | 2.90 | 14.40 | H-LAK10 H-ZF7L |
| 18AC080-010-A | 10.00 | 8.00 | 6.50 | 4.90 | 6.70 | H-ZBAF52 H-ZF7L |
| 18AC080-010-B | 10.00 | 8.00 | 5.80 | 4.40 | 7.00 | LAK8 H-ZF7L |
| 18AC080-010-C | 10.00 | 8.00 | 5.50 | 3.90 | 7.10 | H-ZBAF52 H-ZF7L |
| 18AC080-016-A | 16.00 | 8.00 | 4.00 | 3.10 | 13.90 | H-ZBAF52 H-ZF7L |
| 18AC080-016-B | 16.00 | 8.00 | 4.00 | 3.00 | 14.00 | H-LAK1 0 H-ZF7L |
| 18AC080-016-C | 16.00 | 8.00 | 4.80 | 3.80 | 12.30 | H-LAK10 H-ZF7L |
| 18AC080-020-A | 20.00 | 8.00 | 4.00 | 3.00 | 17.80 | H-K9L ZF1 |
| 18AC080-020-B | 20.00 | 8.00 | 3.60 | 2.80 | 18.20 | H-LAK10 H-ZF7L |
| 18AC080-020-C | 20.00 | 8.00 | 4.60 | 3.70 | 15.70 | H-LAK10 H-ZF7L |
| 18AC127-019-A | 19.00 | 12.70 | 6.00 | 4.00 | 15.70 | H-ZBAF52 H-ZF7L |
| 18AC127-019-B | 19.00 | 12.70 | 6.00 | 3.90 | 15.50 | H-ZBAF52 H-ZF7L |
| 編號(NO.) | 焦距(EFL) | 直徑(Dia) | 中心厚(Tc) | 邊厚(Te) | 后焦距(BFL) | 材料(Material) |
| 18AC127-019-C | 19.00 | 12.70 | 6.50 | 4.30 | 15.40 | H-LAK10 H-ZF7L |
| 18AC127-025-A | 25.00 | 12.70 | 7.00 | 5.60 | 21.50 | H-ZBAF52 ZF4 |
| 18AC127-025-B | 25.00 | 12.70 | 7.00 | 5.40 | 21.10 | H-LAK10 H-ZF7L |
| 18AC127-025-C | 25.00 | 12.70 | 6.20 | 4.50 | 20.30 | H-LAK10 H-ZF7L |
| 18AC127-030-A | 30.00 | 12.70 | 5.00 | 3.40 | 27.50 | H-K9L ZF1 |
| 18AC127-030-B | 30.00 | 12.70 | 5.00 | 3.70 | 27.30 | H-LAK10 H-ZF7L |
| 18AC127-030-C | 30.00 | 12.70 | 6.20 | 4.80 | 24.50 | H-LAK10 H-ZF7L |
| 18AC127-050-A | 50.00 | 12.70 | 5.00 | 4.00 | 47.20 | H-K9L ZF1 |
| 18AC127-050-B | 50.00 | 12.70 | 5.00 | 4.20 | 46.20 | H-ZBAF52 H-ZF7L |
| 18AC127-050-C | 50.00 | 12.70 | 5.50 | 4.60 | 43.50 | H-ZBAF52 H-ZF7L |
| 18AC127-075-A | 75.00 | 12.70 | 4.00 | 3.40 | 72.90 | H-K9L ZF1 |
| 18AC127-075-B | 75.00 | 12.70 | 4.00 | 3.50 | 72.00 | H-ZBAF52 H-ZF7L |
| 18AC127-075-C | 75.00 | 12.70 | 4.50 | 3.90 | 69.70 | H-ZBAF52 H-ZF7L |
| 18AC254-030-A | 30.00 | 25.40 | 14.00 | 8.80 | 22.90 | H-ZBAF52 H-ZF7L |
| 18AC254-030-B | 30.00 | 25.40 | 13.50 | 8.20 | 23.00 | H-ZBAF52 H-ZF7L |
| 編號(NO.) | 焦距(EFL) | 直徑(Dia) | 中心厚(Tc) | 邊厚(Te) | 后焦距(BFL) | 材料(Material) |
| 18AC254-030-C | 30.00 | 25.40 | 14.80 | 9.40 | 22.20 | H-ZBAF52 H-ZF7L |
| 18AC254-035-A | 35.00 | 25.40 | 14.00 | 9.60 | 27.30 | H-ZBAF52 H-ZF7L |
| 18AC254-035-B | 35.00 | 25.40 | 12.00 | 7.50 | 28.40 | H-ZBAF52 H-ZF7L |
| 18AC254-035-C | 35.00 | 25.40 | 13.30 | 8.70 | 27.40 | H-ZBAF52 H-ZF7L |
| 18AC254-040-A | 40.00 | 25.40 | 12.50 | 7.40 | 33.40 | H-K9L ZF2 |
| 18AC254-040-B | 40.00 | 25.40 | 12.50 | 8.60 | 32.80 | H-ZBAF52 H-ZF7L |
| 18AC254-040-C | 40.00 | 25.40 | 11.80 | 7.70 | 32.80 | H-LAK10 H-ZF7L |
| 18AC254-045-A | 45.00 | 25.40 | 9.00 | 5.70 | 40.20 | H-ZBAF52 H-ZF7L |
| 18AC254-045-B | 45.00 | 25.40 | 9.40 | 5.90 | 39.60 | H-LAK10 H-ZF7L |
| 18AC254-045-C | 45.00 | 25.40 | 11.40 | 7.70 | 36.70 | H-LAK10 H-ZF7L |
| 18AC254-050-A | 50.00 | 25.40 | 11.50 | 8.70 | 43.40 | H-ZBAF52 ZF4 |
| 18AC254-050-B | 50.00 | 25.40 | 9.30 | 6.20 | 45.00 | H-LAK10 H-ZF7L |
| 18AC254-050-C | 50.00 | 25.40 | 10.80 | 7.40 | 41.20 | H-LAK10 H-ZF7L |
| 18AC254-060-A | 60.00 | 25.40 | 10.50 | 8.20 | 54.30 | ZBAF16 ZF4 |
| 18AC254-060-B | 60.00 | 25.40 | 7.70 | 5.10 | 55.80 | H-LAK10 H-ZF7L |
| 編號(NO.) | 焦距(EFL) | 直徑(Dia) | 中心厚(Tc) | 邊厚(Te) | 后焦距(BFL) | 材料(Material) |
| 18AC254-060-C | 60.00 | 25.40 | 10.10 | 7.20 | 50.50 | H-LAK10 H-ZF7L |
| 18AC254-075-A | 75.00 | 25.40 | 9.50 | 6.90 | 70.30 | H-K9L ZF2 |
| 18AC254-075-B | 75.00 | 25.40 | 6.60 | 4.50 | 69.90 | H-ZBAF52 H-ZF7L |
| 18AC254-075-C | 75.00 | 25.40 | 9.40 | 7.10 | 64.90 | H-ZBAF52 H-ZF7L |
| 18AC254-100-A | 100.00 | 25.40 | 6.50 | 4.70 | 97.10 | H-K9L ZF2 |
| 18AC254-100-B | 100.00 | 25.40 | 5.50 | 4.00 | 97.10 | H-LAK10 H-ZF7L |
| 18AC254-100-C | 100.00 | 25.40 | 8.30 | 6.60 | 90.30 | H-ZBAF52 H-ZF7L |
| 18AC254-150-A | 150.00 | 25.40 | 7.90 | 6.60 | 146.10 | H-K9L ZF2 |
| 18AC254-150-B | 150.00 | 25.40 | 7.50 | 6.50 | 144.60 | H-LAK10 H-ZF7L |
| 18AC254-150-C | 150.00 | 25.40 | 7.50 | 6.30 | 140.60 | H-ZBAF52 H-ZF7L |
| 18AC254-200-A | 200.00 | 25.40 | 6.50 | 5.70 | 194.00 | H-ZBAF50 H-LAF4 |
| 18AC254-200-B | 200.00 | 25.40 | 8.00 | 7.30 | 194.80 | H-LAK10 ZF4 |
| 18AC254-200-C | 200.00 | 25.40 | 7.00 | 6.10 | 193.10 | H-LAK10 H-ZF7L |
| 18AC254-250-A | 250.00 | 25.40 | 6.00 | 5.20 | 246.70 | H-K9L ZF1 |
| 18AC254-250-B | 250.00 | 25.40 | 5.50 | 4.70 | 237.50 | ZF2 H-ZF7L |
| 編號(NO.) | 焦距(EFL) | 直徑(Dia) | 中心厚(Tc) | 邊厚(Te) | 后焦距(BFL) | 材料(Material) |
| 18AC254-250-C | 250.00 | 25.40 | 7.00 | 6.00 | 235.30 | ZF1 H-ZF7L |
| 18AC254-300-A | 300.00 | 25.40 | 6.00 | 5.40 | 297.00 | H-K9L ZF1 |
| 18AC254-300-B | 300.00 | 25.40 | 6.00 | 5.30 | 290.00 | ZF2 H-ZF7L |
| 18AC254-300-C | 300.00 | 25.40 | 7.00 | 6.20 | 285.90 | ZF1 H-ZF7L |
| 18AC254-400-A | 400.00 | 25.40 | 6.00 | 5.50 | 396.00 | H-K9L ZF1 |
| 18AC254-400-B | 400.00 | 25.40 | 5.30 | 4.80 | 391.10 | ZF2 H-ZF7L |
| 18AC254-400-C | 400.00 | 25.40 | 6.70 | 6.10 | 386.80 | ZF1 H-ZF7L |
| 18AC254-500-A | 500.00 | 25.40 | 6.00 | 5.60 | 499.90 | H-K9L ZF1 |
| 18AC254-500-B | 500.00 | 25.40 | 6.00 | 5.60 | 480.80 | ZF4 H-ZF7L |
| 18AC254-500-C | 500.00 | 25.40 | 5.50 | 5.00 | 486.90 | ZF1 H-ZF7L |
| 18AC300-050-A | 50.00 | 30.00 | 10.50 | 6.30 | 44.30 | H-ZBAF52 H-ZF7L |
| 18AC300-050-B | 50.00 | 30.00 | 11.50 | 7.20 | 42.90 | H-ZBAF52 H-ZF7L |
| 18AC300-050-C | 50.00 | 30.00 | 12.00 | 7.70 | 44.70 | H-ZBAF52 H-ZF7L |
| 18AC300-080-A | 80.00 | 30.00 | 10.50 | 7.90 | 74.30 | H-ZBAF52 H-ZF7L |
| 18AC300-080-B | 80.00 | 30.00 | 8.50 | 5.80 | 75.30 | H-LAK10 H-ZF7L |
| 編號(NO.) | 焦距(EFL) | 直徑(Dia) | 中心厚(Tc) | 邊厚(Te) | 后焦距(BFL) | 材料(Material) |
| 18AC300-080-C | 80.00 | 30.00 | 11.50 | 8.50 | 68.40 | H-ZBAF52 H-ZF7L |
| 18AC300-100-A | 100.00 | 30.00 | 7.00 | 5.00 | 96.40 | H-ZBAF52 H-ZF7L |
| 18AC300-100-B | 100.00 | 30.00 | 8.00 | 5.90 | 94.00 | H-ZBAF52 H-ZF7L |
| 18AC300-100-C | 100.00 | 30.00 | 10.70 | 8.30 | 88.00 | H-ZBAF52 H-ZF7L |
| 18AC508-075-A | 75.00 | 50.80 | 23.00 | 14.90 | 61.70 | H-ZBAF16 ZF13 |
| 18AC508-075-B | 75.00 | 50.80 | 17.00 | 9.20 | 65.70 | H-LAK10 H-ZF7L |
| 18AC508-075-C | 75.00 | 50.80 | 21.50 | 13.10 | 63.00 | H-ZBAF52 H-ZF7L |
| 18AC508-080-A | 80.00 | 50.80 | 18.00 | 10.50 | 69.90 | H-ZBAF52 H-ZF7L |
| 18AC508-080-B | 80.00 | 50.80 | 18.00 | 10.30 | 69.50 | H-ZBAF52 H-ZF7L |
| 18AC508-080-C | 80.00 | 50.80 | 20.50 | 12.60 | 66.90 | H-ZBAF52 H-ZF7L |
| 18AC508-100-A | 100.00 | 50.80 | 20.00 | 14.40 | 89.00 | H-ZBAF52 ZF4 |
| 18AC508-100-B | 100.00 | 50.80 | 15.0 | 8.70 | 91.50 | H-LAK10 H-ZF7L |
| 18AC508-100-C | 100.00 | 50.80 | 19.50 | 12.80 | 83.00 | H-ZBAF52 H-ZF7L |
| 18AC508-150-A | 150.00 | 50.80 | 15.00 | 9.70 | 141.00 | H-K9L ZF2 |
| 18AC508-150-B | 150.00 | 50.80 | 13.20 | 9.30 | 145.30 | H-LAK10 H-ZF7L |
| 編號(NO.) | 焦距(EFL) | 直徑(Dia) | 中心厚(Tc) | 邊厚(Te) | 后焦距(BFL) | 材料(Material) |
| 18AC508-150-C | 150.00 | 50.80 | 23.00 | 17.70 | 117.70 | H-LAK10 H-ZF7L |
| 18AC508-200-A | 200.00 | 50.80 | 10.50 | 6.70 | 193.70 | H-K9L ZF1 |
| 18AC508-200-B | 200.00 | 50.80 | 13.20 | 10.10 | 193.20 | H-LAK10 H-ZF7L |
| 18AC508-200-C | 200.00 | 50.80 | 15.00 | 11.40 | 182.70 | H-LAK10 H-ZF7L |
| 18AC508-250-A | 250.00 | 50.80 | 9.50 | 6.40 | 244.6 | H-K9L ZF1 |
| 18AC508-250-B | 250.00 | 50.80 | 9.20 | 6.80 | 252.30 | H-ZBAF52 H-ZF7L |
| 18AC508-250-C | 250.00 | 50.80 | 13.00 | 10.20 | 234.40 | H-ZBAF52 H-ZF7L |
| 18AC508-300-A | 300.00 | 50.80 | 8.00 | 5.40 | 295.40 | H-K9L ZF1 |
| 18AC508-300-B | 300.00 | 50.80 | 9.20 | 7.20 | 295.10 | H-LAK10 H-ZF7L |
| 18AC508-300-C | 300.00 | 50.80 | 11.50 | 9.10 | 287.40 | H-ZBAF52 H-ZF7L |
| 18AC508-400-A | 400.00 | 50.80 | 7.00 | 5.10 | 396.10 | H-K9L ZF1 |
| 18AC508-400-B | 400.00 | 50.80 | 7.10 | 5.60 | 393.60 | H-LAK10 H-ZF7L |
| 18AC508-400-C | 400.00 | 50.80 | 9.50 | 7.80 | 391.10 | H-ZBAF52 H-ZF7L |
| 18AC508-500-A | 500.00 | 50.80 | 7.00 | 5.50 | 495.80 | H-K9L ZF1 |
| 18AC508-500-B | 500.00 | 50.80 | 7.10 | 5.90 | 497.00 | H-LAK10 H-ZF7L |
| 編號(NO.) | 焦距(EFL) | 直徑(Dia) | 中心厚(Tc) | 邊厚(Te) | 后焦距(BFL) | 材料(Material) |
| 18AC508-500-C | 500.00 | 50.80 | 11.80 | 9.90 | 474.40 | ZF2 H-ZF7L |
| 18AC508-750-A | 750.00 | 50.80 | 6.50 | 5.50 | 746.50 | H-K9L ZF1 |
| 18AC508-750-B | 750.00 | 50.80 | 6.70 | 6.0 | 744.80 | H-ZBAF52 ZF4 |
| 18AC508-750-C | 750.00 | 50.80 | 11.80 | 10.70 | 711.00 | ZF4 H-ZF7L |
| 18AC508-1000-A | 1000.00 | 50.80 | 6.00 | 5.20 | 994.60 | H-K9L ZF1 |
| 18AC508-1000-B | 1000.00 | 50.80 | 7.00 | 6.40 | 993.40 | H-ZBAF52 H-ZF7L |
| 18AC508-1000-C | 1000.00 | 50.80 | 9.00 | 8.10 | 990.50 | ZF2 H-ZF7L |
