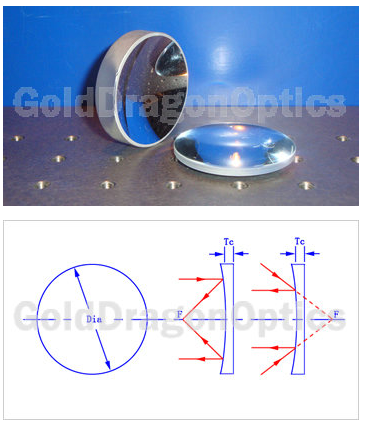

球面反射鏡 (尺寸及鍍膜可按用戶需求定制)單位(mm) |
|
型號 |
外圓(Dia) |
反射焦距(F) |
半徑(R) |
中心厚(Tc) |
|
51C05012R |
12.70 |
12.00 |
24.00 |
3.00 |
|
51C05025R |
12.70 |
25.00 |
50.00 |
3.00 |
|
51C05050R |
12.70 |
50.00 |
100.00 |
3.00 |
|
51C10050R |
25.40 |
50.00 |
100.00 |
6.00 |
|
51C10075R |
25.40 |
75.00 |
150.00 |
6.00 |
|
51C10100R |
25.40 |
100.00 |
200.00 |
6.00 |
|
51C10150R |
25.40 |
150.00 |
300.00 |
6.00 |
|
51C10200R |
25.40 |
200.00 |
400.00 |
6.00 |
|
51C10250R |
25.40 |
250.00 |
500.00 |
6.00 |
|
51C20050R |
50.80 |
50.00 |
100.00 |
9.00 |
|
51C20100R |
50.80 |
100.00 |
200.00 |
9.00 |
|
51C20150R |
50.80 |
150.00 |
300.00 |
9.00 |
|
51C20200R |
50.80 |
200.00 |
400.00 |
9.00 |
|
|
